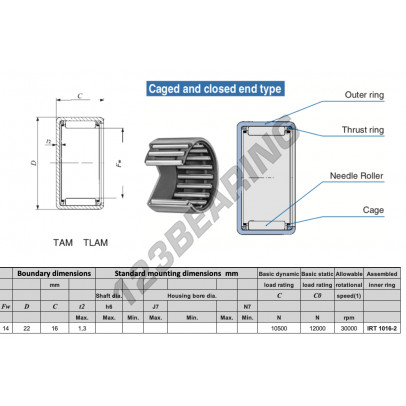

Drawn Cup Needle Roller Bearing
14
22
16
Part number : TAM1416-IKO
Description
The Drawn Cup Needle Roller Bearing, known as TAM1416-IKO IKO, has an inner diameter of 14 mm, an outer diameter of 22 mm and a thickness of 16 mm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
8 to 10 days
Secure payment
Need help or advice?
(646).712.9672
Description
The Drawn Cup Needle Roller Bearing, known as TAM1416-IKO IKO, has an inner diameter of 14 mm, an outer diameter of 22 mm and a thickness of 16 mm.
You can find all the information you need about our products in our expert's advice, by clicking here Here
Secure payment
Need help or advice?
(646).712.9672
| Brand | IKO |
|---|---|
| Inside diameter | 14 mm |
| Outside diameter | 22 mm |
| Thickness | 16 mm |
| Limiting speed | 30 000 rpm |
| Dynamic load | 10,50 kN |
| Static load | 12 kN |
| Packaging | 1 |
The Drawn Cup Needle Roller Bearing, known as TAM1416-IKO IKO, has an inner diameter of 14 mm, an outer diameter of 22 mm and a thickness of 16 mm.
