ansi-35-3-elite-din8188-5m-iwis
IWIS

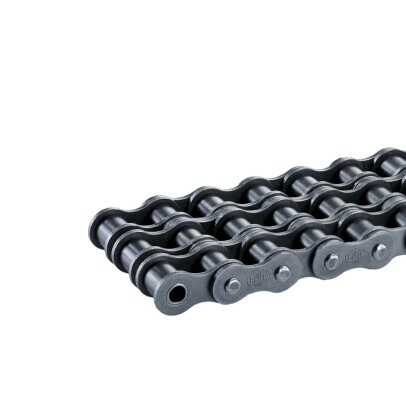

Roller Chain Triplex

ANSI-35-3-ELITE-DIN8188-5M-IWIS

Part number : ANSI-35-3-ELITE-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The roller chain triplex of type 35 of the brand IWIS known under the reference ANSI-35-3-ELITE-DIN8188-5M-IWIS. It has a pitch 9 mm and is to the 10 norm.

See data sheet

You can find all the information you need about our products in our expert's advice, by clicking here Here

Your price: $191.05

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

Description

The roller chain triplex of type 35 of the brand IWIS known under the reference ANSI-35-3-ELITE-DIN8188-5M-IWIS. It has a pitch 9 mm and is to the 10 norm.

See data sheet

You can find all the information you need about our products in our expert's advice, by clicking here Here

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

TECHNICAL DATA

Brand IWIS
Pitch 9 mm
Weight 5 g
Type 35
Axis diameter 3 mm
number of rows 3
Chain standards iso606ansi
Weight per meter 1 kg
Lubrication elidurplus
Plate height 9 mm
Packaging 5m
Roller diameter 5 mm
ISO standard breaking load 23 kN
Additional length 3 mm
Width between inner plates 4 mm
Outside width inside link 7 mm

PRODUCT DESCRIPTION

The roller chain triplex of type 35 of the brand IWIS known under the reference ANSI-35-3-ELITE-DIN8188-5M-IWIS. It has a pitch 9 mm and is to the 10 norm.

EXPERT ADVICE

How to read the reference of a roller chain?


10B-3-SS-ELITE-5M-IWIS :




  • 10B : roller chain type
    •

  • 3 : roller chain triplex
    •

  • SS : specificity which indicates that the chain is made of stainless steel
    •

  • ELITE : brand
    •

  • 5M : packaging in 5 meters
    •



List of specificities:




  • SS : stainless steel
    •

  • NP : nickel-plated steel
    •

  • ZP : zinc plated
    •

  • H : reinforced
    •

  • HV : much reinforced
    •

  • GL : straight plate
    •

  • G1 : rubber coating
    •
