IWIS

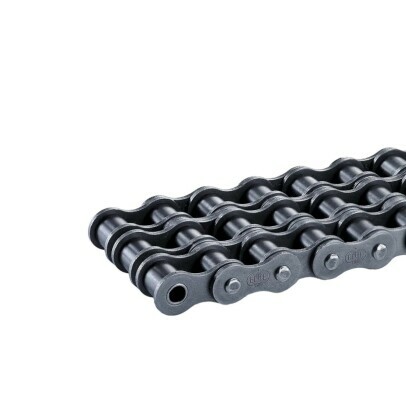

Roller Chain Triplex

ANSI-100-3-ELITE-DIN8188-5M-IWIS

Part number : ANSI-100-3-ELITE-DIN8188-5M-IWIS

IWIS
Trustpilot

Trustpilot

Description

The roller chain triplex of type 100 of the brand IWIS known under the reference ANSI-100-3-ELITE-DIN8188-5M-IWIS. It has a pitch 31 mm and is to the 10 norm.

See data sheet

You can find all the information you need about our products in our expert's advice, by clicking here Here

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

Description

The roller chain triplex of type 100 of the brand IWIS known under the reference ANSI-100-3-ELITE-DIN8188-5M-IWIS. It has a pitch 31 mm and is to the 10 norm.

See data sheet

You can find all the information you need about our products in our expert's advice, by clicking here Here

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Trustpilot

TECHNICAL DATA

Brand IWIS
Pitch 31 mm
Weight 58 g
Type 100
Axis diameter 9 mm
number of rows 3
Chain standards iso606ansi
Weight per meter 11 kg
Lubrication elidurplus
Plate height 30 mm
Packaging 5m
Roller diameter 19 mm
Joint surface 7 cm2
ISO standard breaking load 261 kN
Additional length 6 mm
Width between inner plates 18 mm
Outside width inside link 27 mm

PRODUCT DESCRIPTION

The roller chain triplex of type 100 of the brand IWIS known under the reference ANSI-100-3-ELITE-DIN8188-5M-IWIS. It has a pitch 31 mm and is to the 10 norm.

EXPERT ADVICE

How to read the reference of a roller chain?


10B-3-SS-ELITE-5M-IWIS :




  • 10B : roller chain type
    •

  • 3 : roller chain triplex
    •

  • SS : specificity which indicates that the chain is made of stainless steel
    •

  • ELITE : brand
    •

  • 5M : packaging in 5 meters
    •



List of specificities:




  • SS : stainless steel
    •

  • NP : nickel-plated steel
    •

  • ZP : zinc plated
    •

  • H : reinforced
    •

  • HV : much reinforced
    •

  • GL : straight plate
    •

  • G1 : rubber coating
    •
