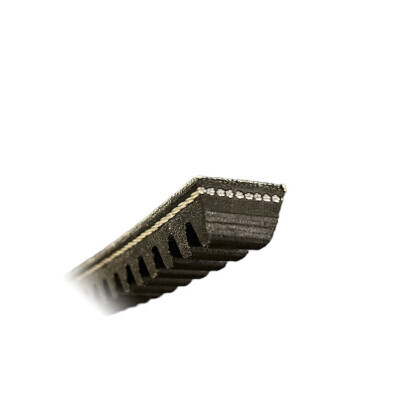

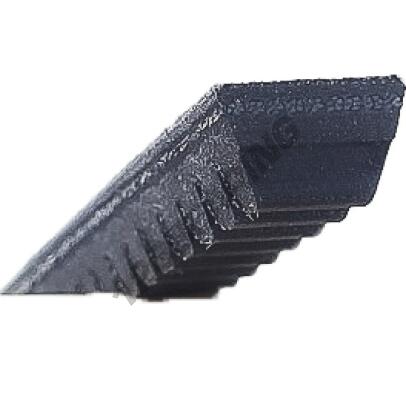

RAW EDGE COGGED V-BELT

Part number BX90

2291 Inside length 2291
BX90 Raw edge cogged v-belt
GEN
BX90
Compare product
Your price: $38.72

  8 to 10 days (1 day ago )

Quantity Price
1 - 4 $38.72
5 - 9 $35.36
10 - 24 $32.00
25 - 49 $28.64
50 - inf $25.28
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Your price: $38.72

  8 to 10 days (1 day ago )

Trustpilot

Description

The BX90 belt of the Raw Edge Cogged V-belt family, by brand Generic, and in BX profile. It has a 17mm x 11mm section with a 2291 mm internal length, a 2360 mm external length, and a 2331 mm primitive length.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

CUSTOMERS ALSO BOUGHT
Oil filled plain bronze bush - BNZ50-54-45 GEN

OIL FILLED PLAIN BRONZE BUSH BNZ50-54-45

50 Inside diameter 50 54 Outside diameter 54 45 Thickness 45

$23.39

  6 parts in stock (1 day ago )
V-Belt Wrapped - B90-CONTITECH CONTITECH

V-BELT WRAPPED B90-CONTITECH

2286 Inside length 2286

$47.07

  10 parts in stock (1 day ago )
Rod end TPN - GF40-DO-DUNLOP DUNLOP

ROD END TPN GF40-DO-DUNLOP

40 Inside diameter 40 100 Outside diameter 100 35 Thickness 35

$45.15

  31 parts in stock (1 day ago )
TECHNICAL DATA
  • BRAND
    GEN
  • SECTION
    BX (17mm x 11mm)
  • PRIMITIVE LENGTH
    2331  MM
  • INSIDE LENGTH (IN)
    90  IN
  • INSIDE LENGTH
    2291  MM
  • OUTSIDE LENGTH
    2360  MM
  • BELT HEIGHT
    11  MM
  • BELT WIDTH
    17  MM
  • PITCH LENGTH
    2326  MM
  • BELT RANGE
    WHITE
  • PACKAGING
    1
  • WEIGHT
    427  G
Description

The BX90 belt of the Raw Edge Cogged V-belt family, by brand Generic, and in BX profile. It has a 17mm x 11mm section with a 2291 mm internal length, a 2360 mm external length, and a 2331 mm primitive length.

EXPERT ADVICE






HOW DO I MEASURE MY BELT?








1 DETERMINE SECTION (lxh)




Measure width in mm section


Measure height in mm








2 MEASURING INSIDE AND OUTSIDE LENGTHS




length


Use chalk to make a reference point.


Using a tape measure, measure the entire outside length of the belt.

Same exercise, this time with the inner part of the belt.
