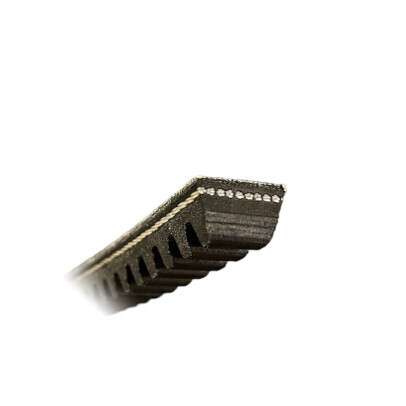

RAW EDGE COGGED V-BELT

Part number AX97

2464 Inside length 2464
AX97 Raw edge cogged v-belt
GEN
AX97
Compare product
Your price: N/A

  8 to 10 days (7 days ago )

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Your price: N/A

  8 to 10 days (7 days ago )

Trustpilot

Description

The AX97 belt of the Raw Edge Cogged V-belt family, by brand Generic, and in AX profile. It has a 13mm x 8mm section with a 2464 mm internal length, a 2514 mm external length, and a 2494 mm primitive length.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

CUSTOMERS ALSO BOUGHT
Rotary shaft seal - DC-35X72X10-NBR GEN

ROTARY SHAFT SEAL DC-35X72X10-NBR

35 Inside diameter 35 72 Outside diameter 72 10 Thickness 10

$16.51

  13 parts in stock (7 days ago )
Raw edge cogged v-belt - AX54 GEN

RAW EDGE COGGED V-BELT AX54

1375 Inside length 1375

N/A

  8 to 10 days (7 days ago )
TECHNICAL DATA
  • BRAND
    GEN
  • SECTION
    AX (13mm x 8mm)
  • PRIMITIVE LENGTH
    2494  MM
  • INSIDE LENGTH (IN)
    97  IN
  • INSIDE LENGTH
    2464  MM
  • OUTSIDE LENGTH
    2514  MM
  • BELT HEIGHT
    8  MM
  • BELT WIDTH
    13  MM
  • PITCH LENGTH
    2494  MM
  • BELT RANGE
    WHITE
  • PACKAGING
    1
  • WEIGHT
    269  G
Compatibilities
Description

The AX97 belt of the Raw Edge Cogged V-belt family, by brand Generic, and in AX profile. It has a 13mm x 8mm section with a 2464 mm internal length, a 2514 mm external length, and a 2494 mm primitive length.

EXPERT ADVICE






HOW DO I MEASURE MY BELT?








1 DETERMINE SECTION (lxh)




Measure width in mm section


Measure height in mm








2 MEASURING INSIDE AND OUTSIDE LENGTHS




length


Use chalk to make a reference point.


Using a tape measure, measure the entire outside length of the belt.

Same exercise, this time with the inner part of the belt.
