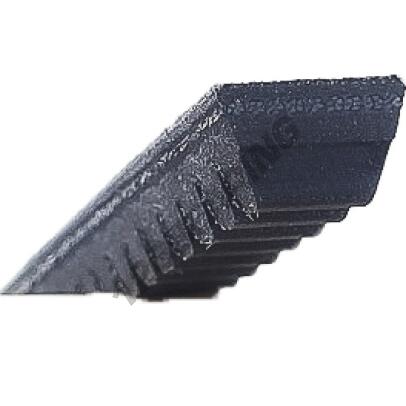

RAW EDGE COGGED V-BELT

Part number AX32

813 Inside length 813
AX32 Raw edge cogged v-belt
GEN
AX32
Compare product
Your price: $12.90

  5 parts in stock (3 days ago )

Quantity Price
1 - 4 $12.90
5 - 9 $11.27
10 - 24 $9.64
25 - 49 $8.01
50 - inf $6.38
For more information, please request a quote
logo_delivery Shipped today. order within

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Your price: $12.90

  5 parts in stock (3 days ago )

logo_delivery Shipped today. order within
Trustpilot

Description

The AX32 belt of the Raw Edge Cogged V-belt family, by brand Generic, and in AX profile. It has a 13mm x 8mm section with a 813 mm internal length, a 863 mm external length, and a 843 mm primitive length.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

CUSTOMERS ALSO BOUGHT
Deep groove ball bearing - 608-24-ZZ-ZEN ZEN

Dust-tight

DEEP GROOVE BALL BEARING 608-24-ZZ-ZEN

8 Inside diameter 8 24 Outside diameter 24 7 Thickness 7

$7.16

  13 parts in stock (3 days ago )
Thrust washer - AS2542 GEN

THRUST WASHER AS2542

25 Inside diameter 25 42 Outside diameter 42 1 Thickness 1

$1.15

  50+ parts in stock (3 days ago )
Raw edge cogged v-belt - AX33 GEN

RAW EDGE COGGED V-BELT AX33

838 Inside length 838

$6.97

  24 parts in stock (3 days ago )
TECHNICAL DATA
  • BRAND
    GEN
  • SECTION
    AX (13mm x 8mm)
  • PRIMITIVE LENGTH
    843  MM
  • INSIDE LENGTH (IN)
    32  IN
  • INSIDE LENGTH
    813  MM
  • OUTSIDE LENGTH
    863  MM
  • BELT HEIGHT
    8  MM
  • BELT WIDTH
    13  MM
  • PITCH LENGTH
    843  MM
  • BELT RANGE
    WHITE
  • PACKAGING
    1
  • STANDARD
    No standard
  • WEIGHT
    98  G
Description

The AX32 belt of the Raw Edge Cogged V-belt family, by brand Generic, and in AX profile. It has a 13mm x 8mm section with a 813 mm internal length, a 863 mm external length, and a 843 mm primitive length.

EXPERT ADVICE






HOW DO I MEASURE MY BELT?








1 DETERMINE SECTION (lxh)




Measure width in mm section


Measure height in mm








2 MEASURING INSIDE AND OUTSIDE LENGTHS




length


Use chalk to make a reference point.


Using a tape measure, measure the entire outside length of the belt.

Same exercise, this time with the inner part of the belt.
