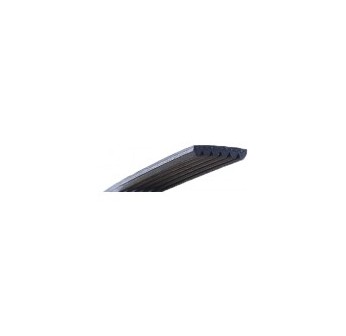

Classical poly-v belts 7PK1785








                    HOW TO MEASURE MY V-BELT ?













                                1


                                DETERMINE THE SECTION (lxh)






                                    Take the length measurement in mm




                                    Take the height measurement in mm










                                2


                                MEASURE INNER AND EXTERIOR LENGTHS










                                    Make a landmark whit a chalk.
Take a mater, then measure the entire outer length of the v-belt.



                                    Same exercise this time with the inner part of the v-belt.
