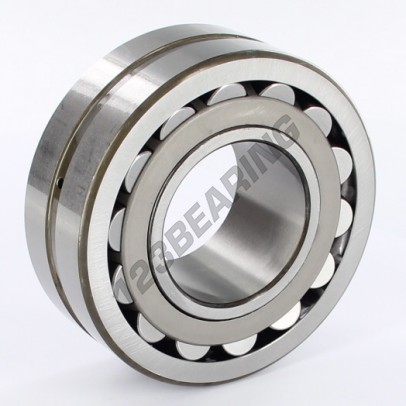

Self aligning roller bearing 22309-EK-SKF

45 45 100 100 36 36

Part number : 22309-EK-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 22309-EK-SKF SKF, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

Your price: $135.87

  3 parts in stock (1 day ago )

Quantity Price
1 - 4 $135.87
5 - 9 $133.58
10 - 24 $131.29
25 - 49 $129.00
50 - inf $126.71
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

Description

The Self Aligning Roller Bearing, known as 22309-EK-SKF SKF, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

(646).712.9672

CUSTOMERS ALSO BOUGHT
Rotary shaft seal - OAS-40X55X7-NBR GEN

ROTARY SHAFT SEAL OAS-40X55X7-NBR

40 40 55 55 7 7
Adapter sleeve - H2309 GEN

ADAPTER SLEEVE H2309

40 40 65 65 50 50
Bearing inner race - IR50-60-25-SKF SKF

BEARING INNER RACE IR50-60-25-SKF

50 50 60 60 25 25
TECHNICAL DATA
  • BRAND
  • N° EAN13
    7316571580760
  • INSIDE DIAMETER
    45  MM
  • OUTSIDE DIAMETER
    100  MM
  • THICKNESS
    36  MM
  • LIMITING SPEED
    5300  RPM
  • WEIGHT
    1373  G
  • DYNAMIC LOAD
    183000  KN
  • STATIC LOAD
    183000  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 22309-EK-SKF SKF, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
